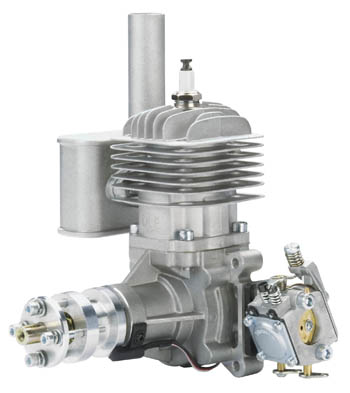

This is the DLE 30cc Gasoline Powered Engine with Electronic Ignition. **Additional Technical Info Will Be Added When It Becomes Available.** FEATURES: Two sealed bearings on crankshaft-simple design for lighter weight Aluminum alloy crankcase Carburetor can be rotated 180° for easier installation Fully automatic electronic ignition Two year limited warranty through Hobby Services beginning at date of purchase INCLUDES: Engine, spark plug, standoffs, ignition, muffler, instruction manual REQUIRES: 87 octane gasoline 2-cycle oil, mix ratio for this engine is 30 parts gas to one part oil and must be followed exactly for warranty consideration and optimum performance 4.8 - 6V battery for ignition (separate receiver style pack can be used) Propeller and field equipment

Specifications : Output Power: 3.7 HP at 8,500 RPM Idle Speed: 1,600 RPM Maximum RPM: Static Thrust: 8.5kg Pulling Force/100 meters altitude 7.5kg Pulling Force/1,800 meters altitude Displacement: 1.86cu in (30.5cc) Bore: 36mm Stroke: 30mm Compression Ratio: 7.6:1 Weight: Engine, 2lbs (910g) Muffler, 2oz (60g) Ignition, 3.9oz (110g) Gasoline/Oil Mixture: 30:1 Gasoline Octane Rating: 87 Recommended Propellers: 18x8 for break-in, 18x10, 19x8, 20x8 Spark Plug: CM6 Distance Between Mounting Hole Centers Same Side: Distance Between Mounting Hole Centers Opposite Side: Height from bottom/Crankcase to top of Cylinder Head: Width of Cylinder Head: Length from Carburetor to Prop Washer: Length from Carburetor to Front Bearing: Distance Between Muffler Mounting Hole Centers: Includes : 1 x DL-30 Engine Auto Advancing Electronic Ignition Mufflers, Bolts and Gaskets Aluminium Standoffs ( 4 )
